(Please read before place order)
Note: K3 Only Suitable for Countries: Russian . Norway,Denmark, Poland, turkey, Iraq, Iran, Saudi Arabia, Yemen, Oman, Afghanistan, Kazakhstan, Pakistan, Uzbekistan, Turkmenistan, Panama, Taiwan.Russia, Mongolia, Columbia, Sweden, Dubai, Czech Republic, Serbia, Bulgaria, Thailand, Burma, India, Vietnam, Bengal, Egypt, Ghana, Uganda, South Africa, Nigeria, Australia.
The product is not Suitable for Germany/France /italy /United Kindom . the item can not work in Germany/France /italy /United Kindom.

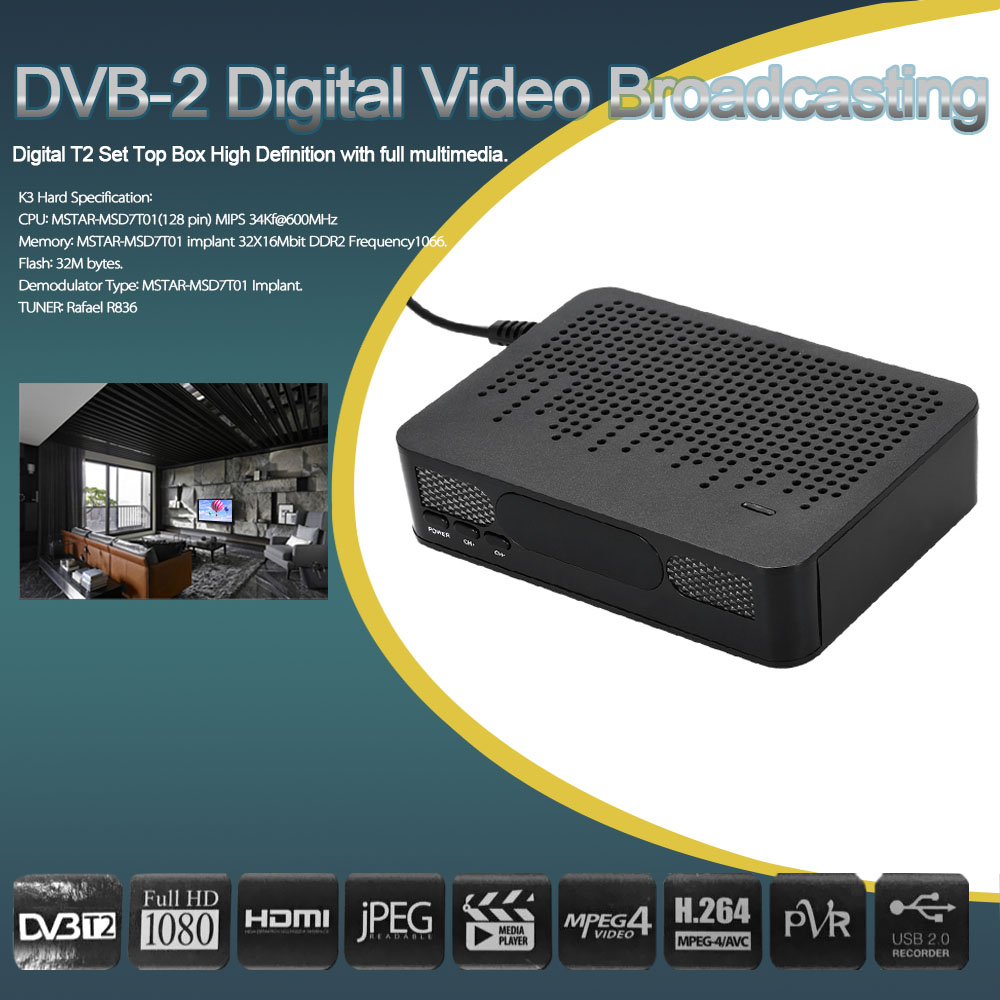

K3 Hard Specification:
Memory: MSTAR-MSD7T01 implant 32X16Mbit DDR2 Frequency1066.
Flash: 32M bytes.
Demodulator Type: MSTAR-MSD7T01 Implant.
TUNER: Rafael R836

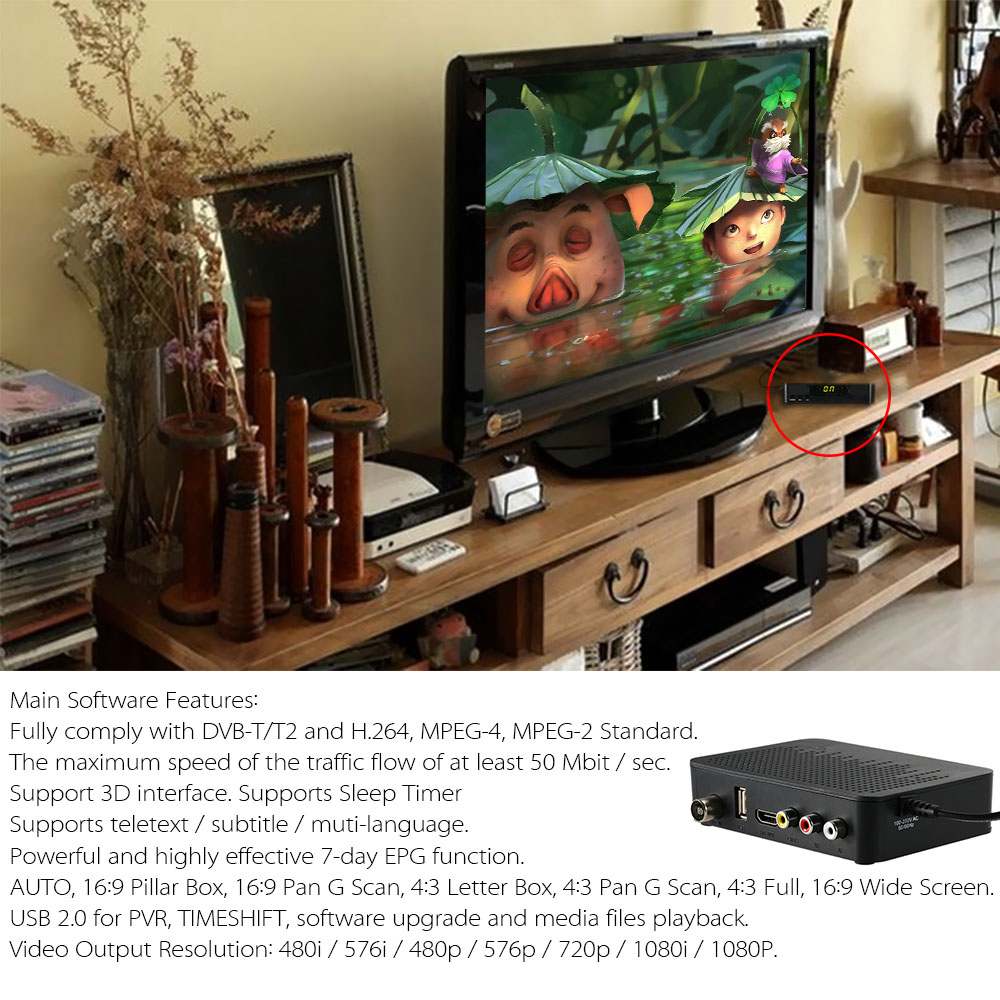

K3 Main Software Features:
Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard.
The maximum speed of the traffic flow at least 50 Mbit / sec.
Support 3D interface. Supports Sleep Timer
Supports teletext / subtitle / muti-language.
Powerful and highly effective 7-day EPG function.
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen.
USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback.
Video Output Resolution: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P.
Decoder:
Video Decoder:
Compliant with: MPEG-4 part10 / MPEG-2 ISO / IEC 13818.
MPEG-4 Simple / Main / Advanced Profile@LEVEL3(10Mbps).
MPEG-2 Main Profile # Main Level(15Mbps).
H.264 MP # L3(10Mbps).H.264 HP L4.1(25Mbps).
Powerful Multimedia Features:
MediaCodec: avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts, etc.
Audio Codec: WMA,MP3,AAC (.wma,.mp3,m4a).
Photo Codec: JPEG, BMP, PNG.
K3 Specifications:
Model Number: K3
Demodulations:
Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744).
Input RF Frequency: 48 ~ 866MHZ
Bandwidth: 6MHz,7MHz,8MHz.
Constellation: QPSK 16-QAM 64-QAM and 256-QAM.
FEC: 1 / 2, 3 / 5,2 / 3, 3 / 4,4 / 5,5 / 6.
Guard Interval: 1 / 128, 1 / 32, 1 / 16, 19 / 256, 1 / 8, 19 / 128, 1 / 4.
FFT Mode: 2K / 8K / 32K.
Support Single and multiple PLPS.
Input Level: -83 ~ -5dBm.

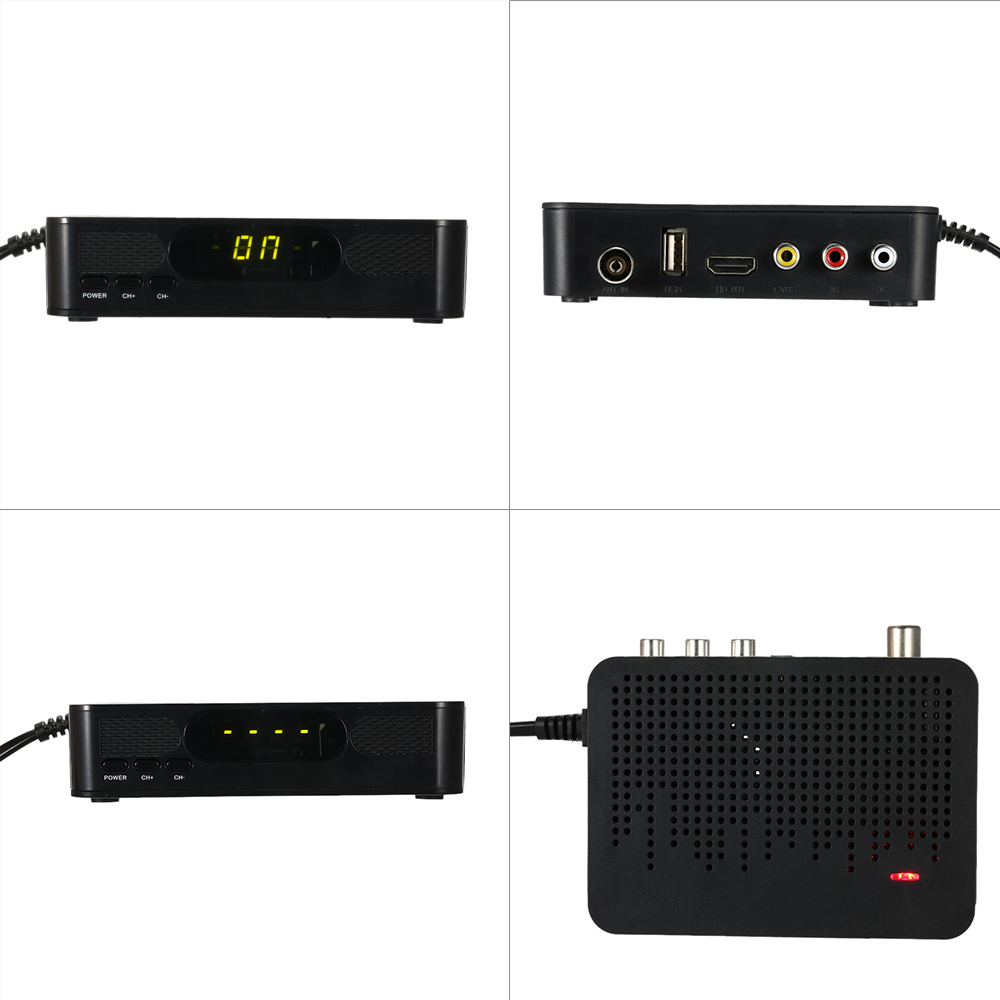

K3 DVB-T2 Front Panel:
4-digit LED display on front panel
Indicator Lamp: Standby: Red LED; Lock: Green LED
Panel Key: POWER, CH+, CH-.
K3 DVB-T2 Rear Panel:
Tuner RF input connector: IEC-162-2( Female).
Tuner RF Loop through connector: IEC-162-2( Male).
HDMI: HDMI V1.3 / V1.4.
1 * RCA (CVBS AL AR) Connector; 1 * Ypbpr RCA; 1 * Coaxial; 1 * Standard USB port.
Power Supply: AC100~240V 50Hz/60Hz.
Color: Black
Machine size: 12.5 * 9.5 * 3.0cm / 4.9 * 3.7 * 1.18in
Machine weight: 180g /6.3oz
Packaged size: 20.0 * 16.5 * 5.0cm / 7.8 * 6.49 * 1.96inch
Packaged weight: 378g / 13.3oz

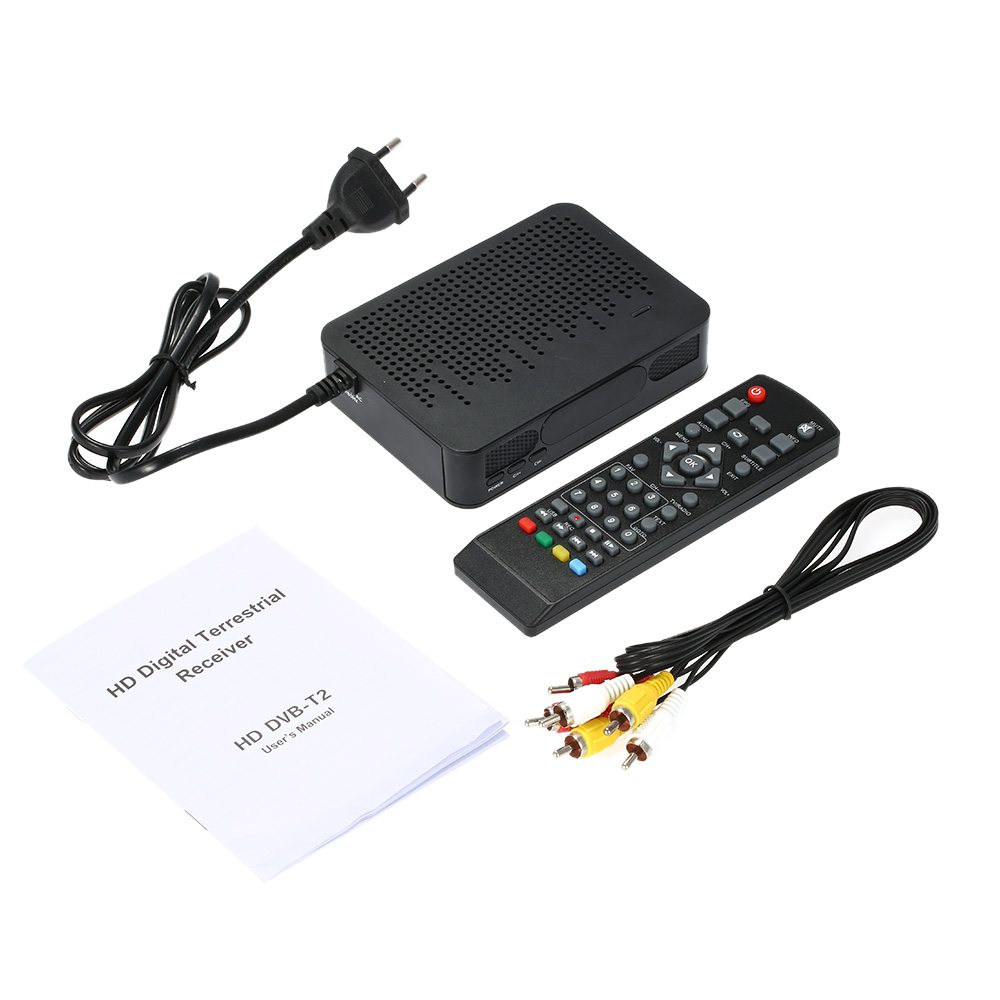

Package List:
1 * K3 DVB-T2 Terrestrial Receiver (with EU Plug)
1 * Remote Controller
1 * RCA Cable
1 * English User manual
